Int J Biol Sci 2007; 3(7):434-445. doi:10.7150/ijbs.3.434
Phycobilisomes linker family in cyanobacterial genomes: divergence and evolution
1. College of Marine Life Science, Faculty of Life Science and Technology, Ocean University of China, 266003, Qingdao, P.R. China
This is an open access article distributed under the terms of the Creative Commons Attribution (CC BY-NC) License. See http://ivyspring.com/terms for full terms and conditions.
How to cite this article:
Guan X, Qin S, Zhao F, Zhang X, Tang X. Phycobilisomes linker family in cyanobacterial genomes: divergence and evolution. Int J Biol Sci 2007; 3(7):434-445. doi:10.7150/ijbs.3.434. Available from http://www.ijbs.com/v03p0434.htm
Cyanobacteria are the oldest life form making important contributions to global CO2 fixation on the Earth. Phycobilisomes (PBSs) are the major light harvesting systems of most cyanobacteria species. Recent availability of the whole genome database of cyanobacteria provides us a global and further view on the complex structural PBSs. A PBSs linker family is crucial in structure and function of major light-harvesting PBSs complexes. Linker polypeptides are considered to have the same ancestor with other phycobiliproteins (PBPs), and might have been diverged and evolved under particularly selective forces together. In this paper, a total of 192 putative linkers including 167 putative PBSs-associated linker genes and 25 Ferredoxin-NADP oxidoreductase (FNR) genes were detected through whole genome analysis of all 25 cyanobacterial genomes (20 finished and 5 in draft state). We compared the PBSs linker family of cyanobacteria in terms of gene structure, chromosome location, conservation domain, and polymorphic variants, and discussed the features and functions of the PBSs linker family. Most of PBSs-associated linkers in PBSs linker family are assembled into gene clusters with PBPs. A phylogenetic analysis based on protein data demonstrates a possibility of six classes of the linker family in cyanobacteria. Emergence, divergence, and disappearance of PBSs linkers among cyanobacterial species were due to speciation, gene duplication, gene transfer, or gene loss, and acclimation to various environmental selective pressures especially light.
Keywords: phycobilisomes, cyanobacteria, linker polypeptides, evolution
Cyanobacteria are prominent constituents of marine biosphere that account for a significant percentage of oceanic primary productivity, and are among the oldest life forms on the Earth capable of doing oxygenic photosynthesis about 3.5 billion years ago, which is similar to the process found in higher plants [1-2]. As the oldest and major light-harvesting antennae, PBSs are highly organized complexes of various PBPs and linker polypeptides (Fig.1.), and are very diverse in structure and pigment composition in cyanobacteria, red algae, and the cryptomonads [3-5]. They function in light harvesting and energy migration toward photosystem II or I reaction centers in thylakoid membrane, except Gloeobacter violaceus PCC7421 (Gv) having no thylakoid membrane [6,7].
On one hand, PBSs linkers transfer energy of PBPs to favor a unidirectional flow of excitation energy from the peripheral rod of PBSs to the PBSs core and then from the PBSs core to the photosynthetic reaction center . On the other, PBSs linkers function to stabilize PBSs structure and determine positions of the PBPs within PBSs structure. At the same time, PBSs linkers also interact directly or indirectly with the chromophores to cause the PBSs structure changes that can modulate different PBPs subassemblies and optimize absorbance characteristics [9-11]. The structural function of PBSs linkers in PBSs has allowed cyanobacteria to colonize environments and show a great diversity in terms of light quantity and quality [12,13]. Positions of highly conserved PBPs were determined by the specific linker polypeptides, and it is possible that linker polypeptides somehow interact to form a scaffold-like structure within PBSs . Whether or not this is the case, it is possible to distinguish various PBPs assemblies specifically by their state of aggregation and by their attachment to relevant linker polypeptides [15-17]. Tandeau de Marsac and Cohen-Bazire demonstrated for the first time that several colorless polypeptides that take 12%–15% of the total stainable proteins of the PBS components are accounted for linker polypeptides from eight species of cyanobacteria by SDS-PAGE . The nominated system of linker polypeptides are according to their locations and molecular masses in PBSs. Glazer  has provided a system of abbreviations to characterize linker peptides with respect to their locations and molecular masses in PBSs: PBSs rod linker (LR, 27 to 35 kDa), PBSs rod-core linker (LRC, 25 to 27 kDa), PBSs core linker (LC, 7.7 to 7.8 kDa), and PBSs core-membrane linker (LCM, 70 to 120 kDa) [16,20]. The importance of linker polypeptide for the assembly of defined complexes and their roles for tuning spectral characteristics of the complexes has been well understood [21,22].

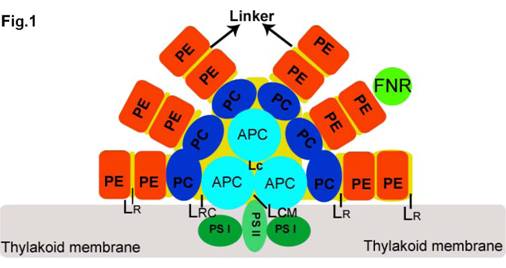

Structural model of a tricylindrical hemidiscoidal phycobilisome (2, 3). The three sky blue circles represent the tricylindrical core APC, and two bottom cylinders attach to the thylakoid membrane (grey rectangle) with LCM. Six rods are arranged by PC (blue circle), and PE (red circle), and attached FNR (grass green circle) with LR from inner to outer part. LRC is the linker between core and rod. All linkers are represented by yellow discs located in each rod.(Click on the image to enlarge.)
FNR, being also considered as linker polypeptides, transfers electrons from ferredoxin to NADP+ to generate NADPH with an average value of 1.3 FNR per PBS, [23,24]. FNR encodes a protein that is composed of three domains: two C-termainal domains enough to enzymatic activity of FNR and a ~9kDa N-terminal domain generally homologous to the small phycocyanin (PC) rod-linker polypeptide CpcD [23,25]. With the exception of CpcD, it is also reported that there are similarity between FNR and other PBSs linkers' different domains [25,26]. In contrast to other PBSs-associated linkers (cluster with PBPs), the γ subunits serving as phycoerythrin (PE) linker polypeptides are chromophorylated, containing two types of covalently attached linear tetrapyrrole chromophores, phycoerythrobilin (PEB), and phycourobilin (PUB) . Genes of LCM and LRC polypeptides are on the plastid genome, while genes ending the γ subunits are present on the nuclear genome [28,29]. Liu  found that no high-degree sequences homology exists between the γ subunits and other linker polypeptides, and suggested that different primary structures in a range of balanced states still perform similar physiological functions [30,31]. In red algae, γ subunits that are also the main chromophorylated components of PBPs and orderly assembled into other PBPs forming a stable complex with α and β subunits of PE [32-34].
At present, more and more cyanobacterial genomes' database have brought about a great convenience in search for PBSs linkers using bioinformatic tools. Here, a comparative genomic analysis on all the data sequences of PBSs linkers in the cyanobacteria is presented. Observation on PBSs linker polypeptides was made in 25 cyanobacteria additional to some model strain cyanobacteria with improved method of separation of the PBSs linker family. Besides, evolution of linker polypeptides in the varieties of PBSs was analyzed and specific connections to PBPs or other linkers were performed for better understanding the function of PBSs in different environments.
2. Materials and Methods
Database searching and sequence retrieving
Genomes database were searched at JGI (http://www.jgi.doe.gov/). Protein sequences of the PBSs linkers previously described were used as queries for database. Cyanobacteria species examined included 25 cyanobacterial genomes (20 complete and 5 ongoing): Anabaena, Nostoc, Gloeobacter, Trichodesmium, Crocosphaera, Synechocystis, Synechococcus and Prochlorococcus. All 25 genome sequences were accessed from IMG (http://img.jgi.doe.gov/cgi-bin/pub/main.cgi) in FASTA format. Each protein in this query dataset was used to search potential novel sequences in all cyanobacteria species with all available genome sequences, by using the BLASTP and TBLASTN programs. Sequences giving better reciprocal BLAST hits were assumed capable of identifying homologous counterparts in these species if they could be aligned up with at least the BLAST-Score > 90 and the E-value < 1E-10. The search was iterated until convergence, examined individually, and then aligned with Clustal X . Sequence identity and similarity were calculated using BioEdit v5.0 . To elucidate the complete genomic structure of the PBSs linkers' genes, all linkers onto the 20 finished cyanobacterial genomes were mapped (Fig. 2).
Similar searches were run with the Pfam domains of the PBSs linker proteins to avoid the exclusion of highly diverged sequences with just limited conserved motifs. PFAM  and SMART  domain analyses with derived sequences that employed as queries were then carried out to eliminate false positives.

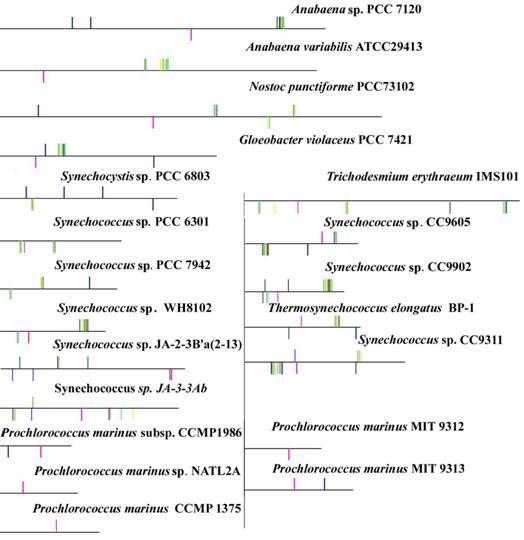

Genomic organization of PBSs linkers in 20 sequenced completely cyanobacterial genomes. Vertical bars show the locations of PBSs linker genes, with FNR in pink and PBSs linkers except FNR in other colors. PBSs linker genes were mapped onto the chromosome evenly. Long horizontal line indicates the chromosome. The vertical bar above horizontal line indicates the transcriptional direction opposite to that below a horizontal line.(Click on the image to enlarge.)
Multiple sequences were aligned using Clustal X, and then adjusted manually. To maximize the number of sites available for analysis, partial sequences and certain sequences with large deletions were excluded. To understand the evolutionary relationships of all PBSs linkers in these cyanobacteria genomes, neighbor-joining method in MEGA3  and maximum parsimony method in PHYLIP  were used to construct the phylogenetic tree, in which confidence levels of each branch were determined by analyzing 1000 bootstrap replicates.
3. Results and discussion
The PBSs linker family in cyanobacteria
From nominated linkers, PBPs-associated linker family comprises five groups of linkers with own locations and molecular masses in the PBSs . Most of the PBSs linkers are clustered with APC (allophycocyanin), and PC or PE. Therefore, they are called APC-associated linker (LC), PC- and PE-associated linker (LR) [41,42], while LRC and LCM are involved in attaching peripheral rods to the APC cores. BLASTP and TBLASTN programs analyses show that a total of 192 linkers (159 putative PBPs-associated linker genes, 8 γ subunits, and 25 FNR genes) were obtained and genes ApcC, CpcC, CpcD, CpeC, CpeD, CpeE, MpeC, MpeE, PecC, CpcG, ApcE, and PetH derived from 25 cyanobacterial genomes in this study (Table 1). The species of 21 cyanobacterial strains, their morphologies, main features, and habitats, as well as the abbreviations used at the end of gene names are shown (Table 2). The number of PBPs-associated linkers in these cyanobacteria is from 1 to 13, and there are a maximum number of 13 PBSs linkers in Cw and Tr. γ subunits as special chromophoric linkers were found in some marine Synechococcus and three low-light adapted Prochlorococcus lineages, while other three sequenced Prochlorococcus have only one type linker FNR (Table 1). Although no γ subunit has been found in low-light adapted P13 from database, it may exist because of the same mode of light-harvesting in other low-light adapted Prochlorococcus, and γ subunits are difficult to be found with only BLASTP as it is in low sequence homology between γ subunits and other linkers . The light-harvesting structure including γ subunit in low-light adapted Prochlorococcus can acclimatize themselves well to same factors especially low-light of environment.
Cyanobacterial genes encoding PBSs linkers.
Words in first () of species line are abbreviations; Words in second () of species line are “Genome Completion: [F]inished, [D]raft”.
The species names of the 21 cyanobacterial strains, morphologies, main features, and habitats.
In overall, the basic architecture of PBS is widely conserved, while PBPs, core structure, and PBSs linkers diversified greatly across different strains of cyanobacteria . Moreover, for a single strain, it depends upon the environmental conditions, such as nutrient availability, temperature, light quality, and light intensity . LC coexisting with LCM is a single-gene in 19 cyanobacterial genomes except for five sequenced Prochlorococcus, and LR and LRC can be found in different amounts in these 20 cyanobacteria. All 25 cyanobacteria including Gv without thylakoids have an FNR. Multiple copies of LRC were identified in most of referred cyanobacterial species in this study. However, only one LRC was found in Cw, S79, S63, SJAb, and SJBa (Table 1), and there is no such linker in Gv and Prochlorococcus. The numbers of PC and PE-associated rod linkers are also diverse among these 25 cyanobacteria. The composition of PBS in cyanobacteria and red algae vary in response to environmental changes in light intensity, light quality (only cyanobacteria), and nutrient availability . Differences in chromophore composition of phycobiliproteins result in wavelength-specific difference in light absorption among species of cyanobacteria. The assembly of the PBS is mediated by linker polypeptides, and each trimeric or hexameric subassembly of PBS contains at least one specific linker polypeptide, which determines the type, location, and aggregation state of the PBP within the rod and also modulates the spectroscopic properties . Light quality and quantity are among the major factors affecting the composition of PBSs. In some cyanobacteria, the relative proportion of PC and PE can vary within the PBS rods in response to a change in light climate [5,17], but such complementary chromatic adaptation is rare among marine Synechococcus [9,41]. Changes in photon fluxes also have an effect on the structure of PBS. Marine cyanobacteria can resist high light stress by decreasing the content of PBS in cell [44,45], due to a reduction in surface of thylakoid membranes . Prochlorococcus and Synechococcus are abundant unicellular cyanobacteria and major participants in global carbon cycles. Although Prochlorococcus and Synechococcus are closely related to each other and often cohabit, they possess very different photosynthetic light-harvesting antennas [45,47,48,49]. Synechococcus and the majority of cyanobacteria use PBSs having 7-12 linkers, while Prochlorococcus uses a chlorophyll a2 /b2 light-harvesting complex. Differences in absorption properties and cellular costs between chlorophyll a2/b2 and PBS antennas differentiate them with own ecological niche in the ocean [45,50]. Prochlorococcus is a unicellular cyanobacterium that lacks PBS and contains chlorophyll b as major accessory pigment, which enables it to absorb blue light efficiently at low-light intensity and blue wavelengths characteristic in deep euphotic zone . P86 and P13 are representatives of high- and low-light adapted ecotypes. The low light-adapted strain has significantly more genes than its high light counterpart such as γ subunits, but neither has PBSs-associated linkers. As transitional light-harvesting antennae, γ subunits appeared more recently than other PBSs-associated linkers and the linkers (FNR and γ subunits) have some compensatory function.
Evolution in genus Prochlorococcus would have evolved towards genome reduction . Specific genome amplification and diversification have taken certain place during adaptation of the latter to their specific environments . The PBSs linker genes should be one of the reduced genes along with Prochlorococcus genomes reduction, whereas all Prochlorococcus strains evolved to use (divinyl-) chlorophyll a/b-protein complexes as the major antenna system . In reverse, there are many PBSs linkers in the genomes of Synechococcus that is also considered as genome reduction. Whether such a reduced genome is a derived state resulting from progressive gene loss or is an ancestral state are unclear. The PBSs of open-ocean Synechococcus cyanobacteria are among the most complex ones described so far since they possess four types of constitutive PBPs: APC, PC, and two forms of phycoerythrin: PEI and PEII. The PE-associated linkers are divergent to PEI- and PEII-associated linkers along with PE divergence. In previous studies, the PBSs and linkers were probably co-evolved from very early stage . Some PBSs rods have one combination of three PE-associated linkers (e.g., CpeC, MpeD, and MpeC), while others would have another combination (e.g., CpeE, MpeD, and MpeE) . Indeed, PBSs rods are in fact more compact than we assumed. Cyanobacteria with short PBSs rods may have a heterogeneous linker composition, which allow these cyanobacteria to colonize a variety of light-quantity and light-quality environments. Ting et al.  presented a scenario to explain how Prochlorococcus antenna evolved in an ancestral cyanobacterium in iron-limited oceans, resulting in diversification in Prochlorococcus and marine Synechococcus lineages from a common PBS-containing ancestor.
Genomic distribution and sequence analysis of PBSs linker genes
In many cases, the PBSs-associated linkers and PBPs as well as enzymes that involved in biosynthesis or binding of phycobilins are directly adjacent to each other on chromosome and may form up an operon that is regulated by a same activator [52,53]. From these data, 36 gene clusters ranging from 1.5 to 13.2 kb were found in these cyanobacterial genomes (Fig.3). In overall, there are 15 APC-associated gene clusters, 12 PC-associated gene clusters, 4 PE with PC or ambiguous PBPs-associated gene clusters, and 5 ambiguous PBPs-associated gene clusters (Fig.3). Most PBSs-associated linkers and PBPs often clustered and transcribed in the same direction, but in the reverse direction with some enzymes' genes. The other linkers' genes such as FNR are arranged randomly in the genome. There are also many linkers contiguous to each other in these genomes such as P99 and Cw genomic sequences, and they do not assemble into an operon. Although there are γ subunits in some Prochlorococcus and Synechococcus, but they do not form gene clusters with other PBSs linker genes. APC-associated linker gene clusters exist universally, and the largest putative operon makes up of PE with PBPs and enzymes' genes in S93. Genes encoding PC or PEC subunits are typically followed by genes encoding APC-associated linker polypeptides and/or the genes for chromophore attachment to the alpha subunit. A LRC gene always follows the above operon and forms a separate transcription unit. The apcC gene, encoding small linker polypeptide Lc8.9, lies downstream from apcB and apcE genes, and upstream from apcA gene. apcC gene with apcA/B genes locate together on a transcriptional unit. As one type of the terminal acceptors of excitation energy within the PBSs, apcC is also found in the attachment of PBSs to the membrane.
The structure of PBSs linker gene clusters varies among species. Almost of PBSs-associated linkers form up gene clusters with PBPs, but the number of CpcG and CpeC, CpeD, and CpeE that are divergent from a same ancestor is uncertain in gene clusters. In N7, there are a PC gene cluster constituting of four CpcG1-4 followed by cpcB/A (C-PC β and chain), CpcD (PC-associated rod linker), and CpcE/F (Phycocyanobilin lyase α and β subunit), loaded in a PE gene cluster adjacently, while in Te a gene cluster make up of three CpcG1, 2, 4 with CpcB/A and CpcE/F. Similarly, an obvious diversity of a PE-cluster existed in Gv, and has three PE-associated linkers CpeC, CpeD, and CpeE. In S63 and S79, the duplicated PC genes arrange a tandem repeat unit with three rod linkers' genes between cpcB1/A1 and downstream cpcB2/A2, cpcE/F set. The occurrence of several different gene sets in the same type of PBS component is apparently the result of adaptation of these organisms to different environmental conditions, such as light quality and nutrient availability. Some linkers have been diverged from a common ancestor along with PBPs divergence and may be caused by gene duplication or horizontal gene transfer.
With known morphology of PBSs linker clusters to construct PBSs, divergence and evolution in arrangement of PBSs cannot be excluded. For example, some PBSs might have one combination of APC-, PC-, and PE-associated linker clusters, while others would have different combinations (only one or two PBPs-associated linker clusters). It is possible that PBSs linker clusters are in fact more compact than we thought, with short rods having a heterogeneous linker composition adapted well to changing environments . In another case, a model strain S81 consists of an APC core and rods that made of one type of PC and two types of PE (I and II), and gather into a complicated operon. PEI and PEII can bind both PUB and PEB in different proportions to light acclimation . In some cyanobacteria, PBSs rod of only PC is simpler since it possesses only one complete set of α and β subunits and two PBSs rod-core linkers (CpcG1 and CpcG2), indicating probably a heterogeneous rod linker composition . Six  hypothesized that PEII-associated linker would firmly anchor the proximal PEII disk to the rest of the rod, whereas the short C-terminus of another PEII-associated linker makes it more susceptible to release/breakage during photo acclimation processes.
In S81, S99, and S96, cpeR occurs downstream of PBPs-associated linkers and genes related with PBSs. The structure is similar to the operon structure of F. diplosiphon, and the genes of operon are regulated by the same activator such as CpeR. CpeR is transcribed as a part of the cpeCDE operon on an extended transcript, and required for expression of the cpeB/A operon. Therefore, it is proposed that at onset of green light, operons cpeCDESTR and cpeB/A are expressed in series as a genetic cascade . Maybe the clusters in S81, S99, and S96 work in the same fashion to that of the operon in F. diplosiphon. According to known genes, ambiguous genes function in clusters of S81, S99, and S96 can be inferred comparatively. This method can deduce the genes' function such as cpeS, and cpcT [55,56], and provide information for validation in experiment.

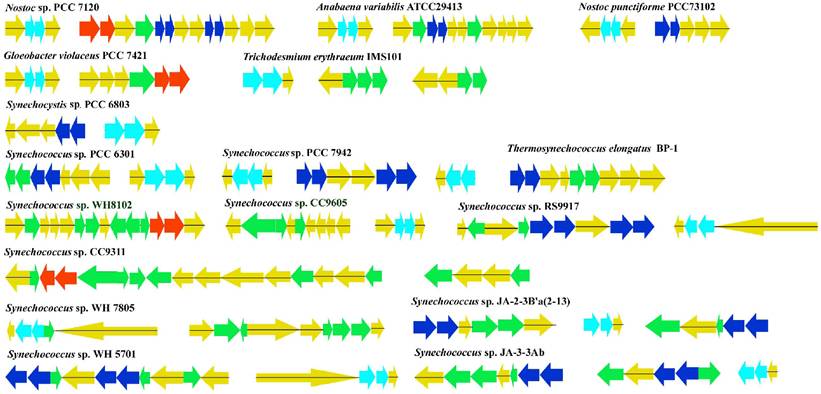

Organization of the gene clusters encoding PBSs and PBSs-associated linkers of 17 cyanobacteria. Arrows represent the direction of translation, and the relative sizes of operon deduced from analysis of the amino acid sequence. The cyanobacteria names are given on top of the corresponding region. Yellow arrows indicate the PBSs-associated linker; sky blue, blue, and red arrows represent APC, PC, and PE, respectively; green arrows mean ambiguous PBPs or PBBs linkers.(Click on the image to enlarge.)
Conservation domain analysis of PBSs linker
Ancestral PBPs are probably associated with same precursor of linker polypeptides. It may be possible that the linker polypeptides developed from an earlier (possibly non-globin) ancestor of PBPs [51,57]. Two additional unique β residues interact directly with the linker polypeptides, and linker polypeptides are conserved with β residues locating in F' and F helices . In N7, we chose a cluster including PBSs-associated linkers, PBPs, PBPs lyase, and FNR, which have conversion domains shown in Fig.4. The amino acids of conversion domains are generally hydrophobic to form β-sheet. The sequence alignment of identified extensions from CpcG (1-4) protein shows that these extensions have 37%-54% identity and 59%-71% similarity, while the identity between CpcGs and PBPs, CpcGs and PBPs lyase are both <10%. The PC-associated linker and PE-associated linker have also a lower identity of about 20%. The amino acid sequences have high sequence identity with each other ranging from 43% to 99% (Fig. 4). The CpcD-like domain of FNR is more frequently found at the C-terminus of CpcD that encodes the unique rod-terminating linker protein LR8.9 PC . Evidenced by this domain's presence at the alignment between LR8.9 PC and FNR in N7, the identity and similarity is only 10% and 14%, respectively. However, a CpcD-like domain is consistent with that localization, which is at the N-terminus of the CpcC proteins and a C-terminus domain, which is more similar to the PC-associated linker protein in Gv . The sequence analysis shows that the identity and similarity between N-region of CpcA approximately 70 amino acids and CpcD are 16% and 44% in N7, respectively. Especially in high-light-grown cells, the cpcD gene apparently did not undergo gene duplication. Therefore, it may assume that LR8.9 functions as rod-terminating linker polypeptide for ending rods with PC . The CpcG3 protein exhibited a strong resemblance to those of CpcG4 at 51% in identity and 72% in similarity, for CpcG1, a 38% identity, and a 59% similarity. CpcG1 with CpcG2 have 53% in identity and 69% in similarity. Conversion domains massed on the N-terminal was also observed among these series of CpcG genes. The sequence alignment in S6 shows that a large part of N-terminus of CpcG2 is almost identical to that of CpcG1, while the C-terminal part is highly diverged from each other . With above values of alignment, CpcG1 and CpcG2 came from a common ancestor (I), and CpcG3 and CpcG4 came from another ancestor (II) in N7. Ancestor I and II associated with each other, and co-evolved in own distinct roles since the very beginning.

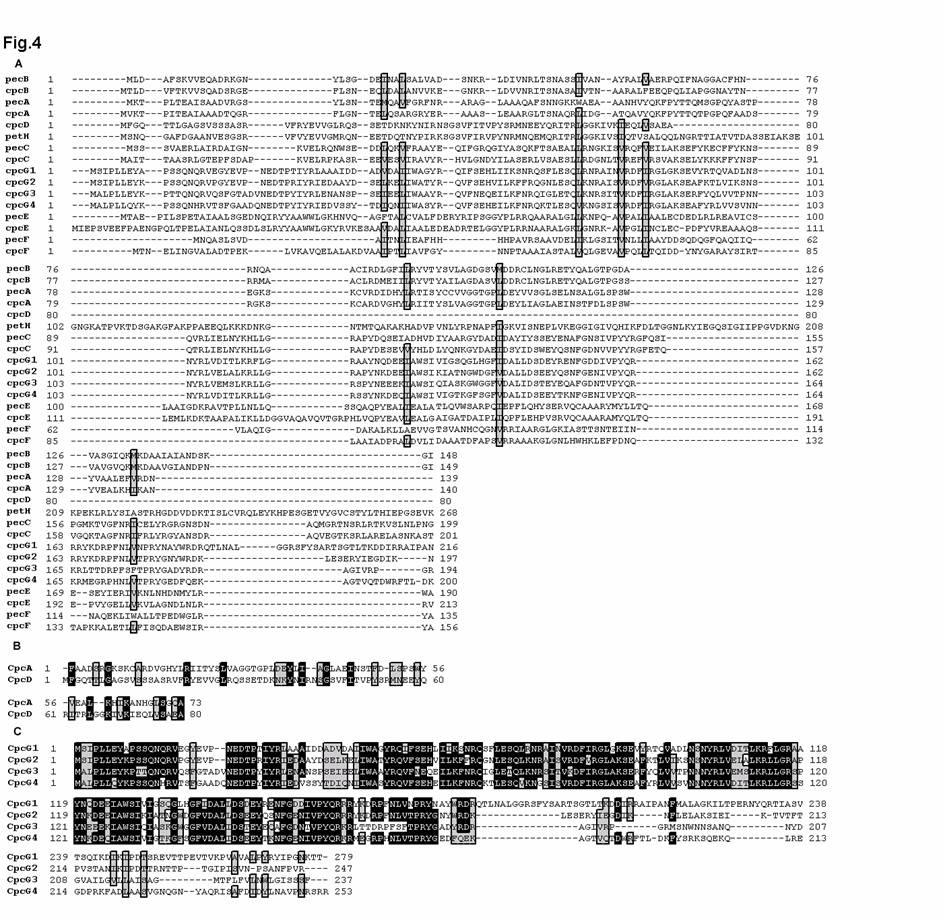

Multiple amino acid sequence alignment of the PBSs linkers with PBPs in Nostoc sp. PCC 7120. (A). Sequence alignments for an opera including pecB, pecC, pecE, pecF, cpcB, cpcA, cpcC, cpcD, cpcE, cpcF, and cpcG1-4 in N7. (B). Sequence alignments for N-terminal domain of FNR in N7. (C). Sequence alignments for cpcG1-4 in N7. The positions of similarity and identity are marked in gray and black, respectively.(Click on the image to enlarge.)
We further investigated the relationship among these PBSs linkers of these 25 cyanobacteria by generating an alignment of 192 identified PBSs linker amino acid sequences followed by generation of an MP phylogenetic tree (Supplementary Material). The resultant tree depicts 6 phylogenetic classes of APC-associated LC, PC, PE-associated LR, LRC, LCM, γ subunit, and FNR. Linkers of APC-associated LC, LRC, and LCM were assembled in monophyletic group distinctly according to their sequences and functional characteristics. Some PE-associated rod linkers are assembled into two groups in different branches, and others disperse throughout the rod linker cluster with PC-associated linkers. A cluster of PE-associated core linkers has a close relationship with γ subunits and the other with LCM. Further, APC-associated LC may share a recent common ancestor with CpcD (LR). The phylogenetic tree reveals that the genetic diversification of all groups involves in a more complex pattern in gene degeneration and duplication. The LRC (CpcG) of N7, Av, SJAb, SJBa, and Te form another cluster, and in two branches of that CpcG1 and CpcG2, CpcG3 and CpcG4 (except CpcG1 of SJAb and SJBa) are in at least 91% and 98% bootstrap values, respectively. These four copies (CpcG1-4) most likely have evolved into a recent duplication, whereas evolution of CpcG among these species is more complex with horizontal gene transfers.
Some ambiguous genes can be divided into these six classes in high bootstrap values with known PBSs linkers by phylogenetic analysis. For example, some innominate PBSs linkers are γ subunits (Syn_cc96050433, Syn_cc99021895, WH5701_00450), and they are high homologous with known MpeC (SYNW2010) in S81. These innominate PBSs linkers may be homological and have the same functions with known PBSs linkers such as MpeC. The ambiguous function genes should be validated in the future.
Although Prochlorococcus has no PBS, the vestiges of a CpcD-like domain which sequence has diverged and become shorter and extensively modified are still recognizable. FNR sequence is possible to be a potentially interesting evolutionary marker for both ancient and recent cyanobacteria . The 16s rDNA sequences from 21 sequenced cyanobacteria were retrieved from IMG, and FNR was the only linker in all these cyanobacteria. Therefore, FNR as a PBSs linker identified in 21 cyanobacteria was also used to construct the phylogeny to discern the evolutionary history of the PBSs linker family (Supplementary Material graph B). Both 16s rDNA and FNR phylogenetic trees can be divided into two major unbalanced clades and separated into several monophyletic clusters with strong bootstrap support. In phylogenetic tree of FNR, clade I contains 18 FNR proteins of these 21 cyanobacteria, while clade II contains only 3 FNR proteins. In clade I, Prochlorococcus and marine Synechococcus form a cluster and share a common PBP-containing ancestor, and may have both diversified at a similar point in evolution . FNR of S63 and S79 are identical, and are highly homologous with the branch of FNR in Av, Np, and N7. In clade II, SJAb sequences share a more recent common ancestor with SJBa than with other Synechococcus, and in a group with Gv at the bottom of both trees except for Te that clusters together in clade II of 16s rDNA. It is found that these groups of FNR that correspond to their 16s rDNA phylogeny are mostly based on the tree topology, but S79, S63, and Te distribute in different clades from the 16s rDNA phylogeny. Therefore, most FNR sequences are highly conservative. The appearance of cyanobacterial FNR might be due to the speciation, and did not diversify under selective pressures.
The current work on the PBSs linker family facilitates our understanding on biological functions and complicated interactions between linker polypeptides and the PBPs from comparative analysis on 25 cyanobacteria genomes. 192 putative PBSs linker genes have been identified from 25 species of cyanobacteria using BLASTP, TBLASTN and ClustalX. The gene clusters of 36 PBSs linkers ranging from 1.5 kb to 13.2 kb were found in these cyanobacterial genomes. The possibilities of six classes of the linker family were demonstrated. Gene duplication, loss, shuffling, and/or horizontal transfer appear to have played important roles during the evolution and divergence of cyanobacterial PBSs linker polypeptides. Various environmental factors especially light acclimation were the primary selective pressures. Future research will drive the field towards a deeper understanding on evolutional mechanisms of photosynthetic light-harvesting complexes in cyanobacteria and red algae.
Unrooted MP tree for PBSs linkers in 25 cyanobacteria and unrooted NJ trees for 16s rDNA and FNR in 21 cyanobacteria
This work was supported by the Key Project (KZCX-2-YW-209) of Knowledge Innovation Program of Chinese Academy of Sciences and Hi-Tech Research and Development Program (2006AA090303) of China (863).
Conflict of interest
The authors have declared that no conflict of interest exists.
