Int J Biol Sci 2020; 16(15):2989-3001. doi:10.7150/ijbs.49890

Review

The Role of Inflammation in Age-Related Macular Degeneration

Wei Tan1,2, Jingling Zou1,2, Shigeo Yoshida3, Bing Jiang1,2, Yedi Zhou1,2 Corresponding address

1. Department of Ophthalmology, The Second Xiangya Hospital, Central South University, Changsha, Hunan 410011, China;
2. Hunan Clinical Research Center of Ophthalmic Disease, Changsha, Hunan 410011, China;
3. Department of Ophthalmology, Kurume University School of Medicine, Kurume, Fukuoka 830-0011, Japan

This is an open access article distributed under the terms of the Creative Commons Attribution License (https://creativecommons.org/licenses/by/4.0/). See http://ivyspring.com/terms for full terms and conditions.
Citation:
Tan W, Zou J, Yoshida S, Jiang B, Zhou Y. The Role of Inflammation in Age-Related Macular Degeneration. Int J Biol Sci 2020; 16(15):2989-3001. doi:10.7150/ijbs.49890. Available from http://www.ijbs.com/v16p2989.htm

File import instruction

Abstract

Age-related macular degeneration (AMD) is a blinding eye disease which incidence gradually increases with age. Inflammation participates in AMD pathogenesis, including choroidal neovascularization and geographic atrophy. It is also a kind of self-protective regulation from injury for the eyes. In this review, we described inflammation in AMD pathogenesis, summarized the roles played by inflammation-related cytokines, including pro-inflammatory and anti-inflammatory cytokines, as well as leukocytes (macrophages, dendritic cells, neutrophils, T lymphocytes and B lymphocytes) in the innate or adaptive immunity in AMD. Possible clinical applications such as potential diagnostic biomarkers and anti-inflammatory therapies were also discussed. This review overviews the inflammation as a target of novel effective therapies in treating AMD.

Keywords: inflammation, cytokine, leukocyte, age-related macular degeneration

Introduction

Age-related macular degeneration (AMD), as the name suggests, is an eye disease closely related to aging with an average onset at around 60 years of age, which causes severe vision loss and blindness, especially in developed countries [1-3]. The number of population with AMD is expected to be 196 million by 2020, and will increase to 288 million by 2040 [4].

There are mainly two types of AMD: dry (also named non-neovascular, non-exudative or atrophic) AMD and wet (also named neovascular or exudative) AMD (nAMD) [5]. As the most common type, dry AMD is characterized by the increase of extracellular deposits called drusen, along with advanced-stage geographic atrophy (GA) which is characterized by decreasing of retinal pigment epithelium (RPE) cells, photoreceptors and choroidal capillaries [5, 6]. Currently, there is no effective treatment for GA, and the complement cascade is expected to be a potential therapeutic option [7]. On the other hand, in patients with wet AMD, which is characterized by choroidal neovascularization (CNV), leading to severe and fast vision impairment, accompanied by hard exudate, leaking fluid or retinal hemorrhage, RPE detachments or develop fibrosis around neovascular tufts [5, 8]. Intravitreal injection of anti-vascular endothelial growth factor (VEGF) agents such as ranibizumab [9] and aflibercept [10], have been widely and effectively used worldwide in the clinical treatment of nAMD via targeting CNV. It has been suggested that anti-VEGF therapy significantly improved vision and quality of life for patients with nAMD [11, 12]. Nevertheless, about one-third of patients do not get effects from anti-VEGF therapy owing to macular fibrosis or atrophy [13]. In addition, there is a heavy demand for repeated intravitreal injections to maintain efficacy [14, 15], which leads to a heavy economic burden. Because of the limitation of anti-VEGF therapies, the development of novel alternative therapies is urgently needed. Some novel molecules were reported to be potentially therapeutic targets, including secretogranin III [16], tenascin-C [17], vitamin D [18], prorenin receptor [19], galactin-1 [20], etc. However, further validations of clinical application have not been reported.

Aging participates in the accumulation of oxidative damage, and it is believed that the primary trigger of age-related degenerative diseases is oxidative damage [21]. Numerous studies paid attention to the crosstalk between oxidative stress and inflammation. It has been indicated that oxidative stress induces inflammation during the AMD pathological process [22]. Pathological oxidative damage contributes to damaged proteins, lipids and DNA, as well as dysfunction of mitochondria, and generates “oxidation-specific epitopes” (such as AGEs and MDA), induced pro-inflammatory responses, and promoted macrophage infiltration and polarization [22, 23]. Inflammation caused by tissue damage is considered to be essential in the protective immune response [21]. It is well known that chronic inflammation involves many age-related diseases such as cancer [24] and Alzheimer's Disease [25]. In this review, we summarize and discuss the role and mechanism(s) of inflammation, as well as inflammatory cytokines and leukocytes in the pathogenesis of AMD.

Inflammation in AMD pathogenesis

AMD is the consequence of a multifactorial interaction of metabolism, functions, genetics and the environment, and these multiple factors foster a stage conducive for the chronic structural changes in the macular area (choriocapillaries, Bruch's membrane (BM), RPE, photoreceptor) [2, 26]. Early signs of AMD contain the appearance of drusen and changes in retinal pigmentation, while advanced stages show CNV or atrophy of photoreceptor cells and RPE [27]. Local inflammation leads to drusogenesis, RPE/photoreceptor degeneration, BM disruption and the development of CNV [26]. Thus, inflammation is believed to play indispensable roles in the pathogenesis of both dry and wet AMD.

The occurrence of CNV is the main feature of nAMD, which is associated with inflammatory cytokines, complement system activation, and promotion/inhibition of macrophages/microglia [28]. Anti-VEGF therapy is mainly used for treating wet AMD, rather than dry AMD. Cytokines such as IL-6 and IP-10 were significantly altered after intravitreal injection of anti-VEGF agents in wet AMD [29]. In dry AMD, with the accumulation of lipofuscin and destruction of phagocytic activity of lysosomal enzymes, photoreceptors and RPE cells are damaged. Inflammatory cells release cytokines to attract more inflammatory cells [30]. Therefore, it is speculated that inflammation plays different roles in the pathogenesis of wet and dry AMD, respectively.

In 2001, Hageman et al. proved that the inflammatory immune response is associated with drusen, ascribed to multiple components found in drusen, including classic acute phase reactants, complement cascade components, etc [31]. Besides, it has been demonstrated that RPE and dendritic cells (DCs) play vital roles in drusogenesis. Choroidal DCs are “activated and recruited” by locally injured and/or sublethal damaged RPE cells, related to RPE blebs, fragments, and debris. It can maintain and enhance the local inflammation by multiple mechanisms, such as forming an immune complex, activating complement and choroidal T-cells or phagocytic cells, collectively contributing to the development of AMD [31, 32].

RPE plays a series of indispensable roles in the eye, such as blood-retinal barrier formation, ocular immune privilege establishment, and secretion of soluble immunomodulatory factors that mediate immunogenic inflammation [33, 34]. The breakdown of ocular immune tolerance involves blood-retinal barrier, anti-inflammatory and anti-immune proteins, resulting in the specific attack by effector T cells on autoantigens [34, 35]. When the blood-ocular barrier is broken, another defense system, called the local ocular immune system, inhibits pathogenic T cells [36]. RPE cells play a regulatory role by secreting soluble inhibitory molecules (transforming growth factor (TGF)-β and thrombospondin (TSP)-1) and transforming T cells into regulatory T cells (Tregs) [36, 37]. In addition to RPE cells, microglia, DCs and perivascular macrophages also participate in immunomodulatory [38]. On the other hand, under the stimulation of inflammatory mediators, such as tumor necrosis factor (TNF)-α, interferon (IFN)-γ and interleukin (IL)-1β, RPE cells produce cytokines and chemokines, including IL-4, -5, -6, -8, -10, -13, -17, IFN-β, IFN-γ, TGF-β, MCP-1 and VEGF. The interaction of pro-inflammatory and anti-inflammatory cytokines ultimately leads to chronic inflammatory responses [39, 40]. Inflammatory cytokines can also enhance the secretion of VEGF, which can initiate and cause the pathological CNV and retinal neovascularization of AMD, and macrophages and lymphocytes were found in the active CNV stage [41]. Altered expression levels of inflammatory factors were revealed in AMD [42-46]. Besides, RPE cells express a series of necessary cytokine receptors such as IL-1R, -4R, -6R, -8RA, -10RB, IFN-AR1, indicated the sensitivity to systemic and retinal inflammatory signals [40]. Moreover, RPE can transport nutrients to photoreceptors and dispose waste products, such as the outer segment is detached and then swallowed by RPE before a new outer segment is formed during the renewal of the photoreceptor membranes [33]. However, accompanied with the degeneration of RPE cells, photoreceptor cells are gradually and irreversibly destroyed, which leads to vision loss [47]. BM is another vital change, which is characterized by increased thickness, basal layer deposits accumulation and/or drusen formation, and there is irregular pigmentation caused by RPE cell hypertrophy, hyperplasia or atrophy. The pathological changes of BM with age further contribute to RPE cell dysfunction and choriocapillaris disorders [38].

Taken together, current evidence indicated that inflammation plays an integral role in the entire pathogenesis of AMD (Figure 2), especially in CNV or GA. We summarize the mechanisms of inflammation-related cytokines and leukocytes, and look forward to getting more inspiration for clinical treatment in AMD.

Cytokines

In aging eyes, due to the regulation of pro- and anti-inflammatory cytokines by RPE, low-grade chronic inflammation may be induced by these and continue for a long time, and then promote AMD pathogenesis [45]. A variety of cytokines have been found to study the relationship between inflammation and the progression of AMD. Regrettably, it is not found that stable trends in different organizations about related cytokines, so we have summarized the present literature about the changes in cytokines in clinical characteristics in Table 1, and their mechanisms in Table 2.

 Table 1

Expression of different cytokines in samples of patients with AMD.

CytokineAMD subtypeSourceExpression
IL-1Wet AMDSerum(IL-1β)↑ [150], (IL-1α+IL-1β)↑[151]
Wet AMDPlasma(IL-1β) ↓[54], ↑[152], No change [44]
Wet AMDVitreous(IL-1β)↑[51]
Wet AMDAqueous humor(IL-1α)↑[153, 154], (IL-1β)No change [153]
Dry AMDPlasma(IL-1β)↓[54]
NAAqueous humorNo change [155]
IL-2Wet AMDAqueous humorNo change [153, 154, 156]
Dry AMDPlasma↓ [54]
IL-3Wet AMDAqueous humor↑ [153]
IL-4Wet AMDSerum↑ [151]
Wet AMDAqueous humorNo change [153, 154, 156]
NAAqueous humorNo change [155]
IL-5Wet AMDSerum↑ [151]
Wet AMDPlasma↓ [54]
Wet AMDAqueous humorNo change [153, 156]
Dry AMDPlasma↓ [54]
IL-6Wet AMD
Wet AMD
Plasma↑ [44, 54, 152]
Aqueous humor↑ [46, 153], ↓ [29], No change [154, 156]
Wet AMDSerumNo change [150]
Wet AMDBlood↑ [157]
Dry AMDPlasma↑ [54]
Dry AMDSerum↑ [158]
NAAqueous humorNo change [155, 159]
IL-8Wet AMDAqueous humor↑ [46, 153, 160], No change [29, 154, 156]
Wet AMDPlasmaNo change [44, 152]
Dry AMDSerum↑ [158]
NAAqueous humorNo change [155], ↑[159]
IL-10Wet AMDSerum↑ [151]
Wet AMDPlasma↓ [54], ↑ [44, 152]
Wet AMDAqueous humorNo change [153, 154, 156]
Dry AMDPlasma↓ [54]
NAAqueous humorNo change [155]
IL-12Wet AMDPlasma↓ [54]
Wet AMDAqueous humor(IL-12p40)↑ [153], (IL-12p70)↓[161], No change [29, 154], (IL-12p70)No change [46, 153, 156]
Dry AMDPlasma↓ [54]
NAAqueous humor(IL-12p70)No change [155]
IL-13Wet AMDSerum↑ [151]
Wet AMDAqueous humor↓ [156], No change [29, 46, 154]
IL-17Wet AMDSerum↑[74, 151]
Wet AMDAqueous humor↓[156], No change [154]
NAAqueous humorNo change [155]
NAMacular lesion↑[77]
IL-23Wet AMDAqueous humorNo change [156]
GM-CSFWet AMDPlasma↑ [54]
Wet AMDAqueous humor↓ [162], No change [156]
Dry AMDPlasma↑ [54]
IFNWet AMD
Wet AMD
Plasma(IFN-γ)↑ [54]
Serum(IFN-β)↑ [163]
Wet AMDAqueous humor(IFN-α+IFN-β+IFN-γ)No change [153]
Dry AMDSerum(IFN-β)No change[163]
BothSerum(IFN-α+IFN-γ)No change [163]
NAPlasma(IFN-γ)No change [164]
NAAqueous humor(IFN-γ)No change [155]
TGFWet AMDAqueous humor(TGF-β1)↑ [165], (TGF-β2)↓ [166], (TGF-α+TGF-β)No change [153]
Wet AMDVitreous(TGF-β1)↑ [167]
TNF-αWet AMDBloodNo change [157]
Wet AMDPlasmaNo change [168]
Wet AMDAqueous humor↓ [161], No change [46, 160]
Dry AMDPlasma↓ [54]
NAAqueous humorNo change [155]
 Table 2

The mechanisms of different cytokines in AMD.

CytokineResearch typeMechanism(s)
IL-1In vitroIL-1α induces inflammasome which increases the sensitivity of RPE cell to cell death mediated by photooxidative damage and the mechanism of cell death becomes pyroptosis [55]
In vivoIL-1Ra therapy signally suppresses CNV [56, 57]
IL-2In vitroIL-2 contributes to cell migration, ECM synthesis and TGF-β2 expression via JAK/STAT3 and NF-κB signaling pathways [59]
IL-4In vivo + in vitrolL-4 suppresses angiogenesis via Arg-1+ macrophage sFlt-1 [80]
IL-6In vitroProteasome inhibitor MG132 upregulates IL-6 secretion by activating of P38 MAPKs [61]
In vivo + in vitroIL-6, expressed by activated macrophages, promotes subretinal fibrosis [60]
IL-6R-mediated activation of STAT3 contributes to CNV [62]
IL-8In vitroIntracellular calcium mobilization promotes IL-8 secretion through NF-κB pathway [63]
CRP can induce IL-8 expression by multiple pathways [64]
25-OH causes IL-8 production through AP-1 and NF-κB pathways [65]
IL-10In vivo + in vitroIL-10/STAT3 signaling contributes to pathological angiogenesis in senescent macrophages [81]
IL-10(-/-) mice can reduce CNV with increased macrophage infiltrates [82]
HSP70 induces IL-10 production through TLR2 and TLR4, and reduces subretinal fibrosis [84]
In vivoCNV is inhibited by low-dose LPS pretreatment through IL-10 secretion by macrophages [83]
IL-13In vitroIL-13 suppresses ARPE-19 cell proliferation and promotes fibrogenesis [85]
IL-17In vitroIL-17 involves in choroidal angiogenesis via PI3K-Rac1 and RhoA-mediated actin cytoskeleton remodeling [76]
In vivo + in vitroIL-17A causes the death of RPE cells by activating Casepase-9 and Casepase-3 [77] and activates IL-1β production [78].
IL-17 contributes to CNV, and IL-17 mainly produced by γδT cells not Th17 cells in the ocular lesions [75]
IL-17 involves inflammation in CNV lesions, through producing γδT cells to strengthen the immune response and probably in a C5a-dependent manner [50].
IFNIn vitroIFN-γ induces VEGF secretion by PI-3K/mTOR/translational pathway [73]
In vivoIFN-β therapy weaken microgliosis and macrophage responses in the early AMD and decreased CNV size in the late AMD [71]
TGF-βIn vivoThe inhibition of TGF-β/Smad signaling suppresses CNV via down-regulation of VEGF and TNF-α [88]
Lack of TGF-β signaling promotes CNV [89, 90]
TNFIn vivo +in vitroBMP4 is down-regulated by TNF by activating JNK pathways in CNV [68]
TNF-α promotes CNV by upregulating VEGF secretion via ROS-dependent activation of β-catenin signaling [66]
In vivoAnti-TNF-α therapy reduces CNV [67]

Pro-inflammatory cytokines include IL-1β, IL-2, IL-6, IL-8, IL-12, IL-17, TNF-α, IFN-γ, colony-stimulating factor (CSF) -1 [48-50]. Inflammasome connects the sensing of pathogen and danger signals with pro-IL-1β activation, and NLR family pyrin domain-containing3 (NLRP3) inflammasome is closely associated with IL-1β maturation. IL-1β can initiate innate immunity related to inflammation, infection and autoimmunity, such as macrophage recruitment, IL-6 activation and chemokine expression modulation [51-53]. If the retina was damaged for a long time, the overreactive neurotoxic microglia would release numerous kinds of pro-inflammatory and cytotoxic factors, including IL-1β, further create a pro-inflammatory environment which is beneficial to the recruitment of retinal microglia and exogenous infiltrating monocytes, and eventually result in progressive photoreceptor degeneration [53, 54]. Evidence has been accumulated that IL-1α induced inflammasome increases the susceptibility of RPE cell to cytotoxicity mediated by photooxidative damage [55]. On the other hand, IL-1β is also known as a pro-angiogenic factor through stimulating VEGF secretion. IL-1 receptor antagonist (IL-1Ra) treatment that inhibits IL-1β significantly suppressed CNV [56-58]. IL-2 participates in RPE cell migration, extracellular matrix (ECM) synthesis, TGF-β2 expression, indicating that IL-2 makes a constructive effect on the fibrosis of macular degeneration [59]. IL-6 is a key mediator for promoting subretinal fibrosis, which is considered as an injured repair in damaged organs [60], and serum IL-6 level correlates with GA [61]. Besides, it has been reported that IL-6 receptor-mediated activation of STAT3 promotes CNV, and the level of IL-6 is associated with the size and activity of CNV in the aqueous humor of AMD patients [60-62]. In the pathological mechanism of AMD, intracellular calcium mobilization, C-reactive protein (CRP) and 25-OH are able to induce IL-8 production and secretion. IL-8 participates in acute and chronic inflammation and has a potent proangiogenic ability. IL-8 causes tissue destruction by further attracting neutrophils and neutrophil-mediated inflammation [63-65]. TNF-α promotes CNV formation via upregulating VEGF production through reactive oxygen species (ROS)-dependent β-catenin activation, while the treatment of anti-TNF-α can reduce the size and leakage of CNV in mice [66, 67]. A recent study indicated that the TNF level is negatively related to the level of bone morphogenetic protein-4 in CNV lesions, which was increased in the dry AMD and decreased in the wet AMD. Moreover, the reduced level of bone morphogenetic protein-4 by TNF may promote the angiogenic environment of the active CNV lesion [68]. Besides, it is found that CSF-1 receptor inhibitor PLX5622 treatment can greatly reduce retinal microglia and the CNV lesion size in mice [69]. As another pro-inflammatory cytokine, IL-12 can activate T cells and NK cells, thereby inducing Th1-related inflammation related to wet AMD [70]. Interestingly, IL-12 may act as an important anti-angiogenic factor to suppress CNV [70]. Likewise, IFN-β therapy can limit microglia/macrophage activation, vessel leakage and the development of CNV in the laser-damage model of nAMD [71]. IFN-β and IFN-γ have an antagonistic effect [72]. IFN-γ promotes the inflammatory response through the activation of pro-inflammatory cytokines and chemokines, then recruits immune cells like macrophages and T cells [72]. IFN-γ is also beneficial to the polarization of M1 macrophages, and synergistically increases the production of IL-6. Moreover, IFN-γ also restrains immune cells associated with autoimmune response and up-regulates anti-inflammatory factors [72]. In the pathological process of AMD, blocking IFN-γ may weaken the protective effect of Th2 response, thereby strengthen the destruction of Th1 cells [72]. Besides, it has been revealed that IFN-γ induces VEGF secretion in RPE cells, and the progression involves the activation of the Phosphoinositide 3-kinase (PI-3K)/mammalian target of rapamycin (mTOR)/ translational pathway [73].

As a Th17 cytokine, IL-17 has a beneficial effect on inflammation of CNV lesions, through producing γδT cells to strengthen the immune response and probably in a C5a-dependent manner [50]. It is indicated that the C5a enhanced secretion of Th17 cytokines from CD4+ T cells and is possibly involved in nAMD [74]. Meanwhile, IL-17 contributes to CNV pathogenesis and the effective IL-17 is mainly produced by γδT cells, rather than Th17 cells in the ocular lesions [75]. IL-17 is also involved in cell migration and tube formation, thereby exerting angiogenesis effect on choroidal endothelial cells (CECs) via PI3K-Rac1 and RhoA-mediated actin cytoskeleton remodeling [76]. IL-17A causes the death of RPE cells [77], and activates IL-1β via NLRP3 in RPE [78]. Another study demonstrated that IL-23 is able to induce IL-17 production from γδT cells [75].

On the other hand, anti-inflammatory cytokines include IL-4, IL-10, IL-13 and TGF-β [79]. IL-4, as a Th2 cytokine, directly drives macrophage soluble fms-like tyrosine kinase 1 (sFlt-1) secretion in Arg-1+ macrophages, and inhibits angiogenesis [80]. IL-10 and its downstream STAT3 signaling activation are major regulators of the aging macrophages mainly toward M2 phenotype, and promote ocular angiogenesis [81]. In IL-10¯/¯ mice, CNV is significantly reduced [82]. Matsumura et al. suggested that the pretreatment of low-dose lipopolysaccharide (LPS) inhibited CNV formation through IL-10 secreted by macrophages [83]. Exogenous HSP70 induces IL-10 production via both TLR2 and TLR4 in RPE cells, thereby attenuates the formation of subretinal fibrosis [84]. IL-13, mainly produced by Th2 cells and monocytes/macrophages, suppressed ARPE-19 cell proliferation in vitro and promoted epithelial-mesenchymal transition (EMT) [85]. The higher level of IL-13 is presented in aqueous humor of AMD [85].

TGF-β is an important promoter of immune homeostasis and tolerance, which inhibits the expansion and function of many components of the immune response [86]. TGF-β superfamily members involves angiogenesis, inflammatory reactions, vascular fibrosis, immune responses and crosstalk with other signaling pathways in AMD pathogenesis [87]. TGF-β plays a vital role in the formation and development of CNV by Smad2/3-VEGF/TNF-α signaling pathway in wet AMD [88]. Interestingly, other studies indicated that deficient of TGF-β signaling leads to retinal degeneration and exacerbates CNV [89, 90]. Furthermore, TGF-β promotes the EMT of RPE cells, induces subretinal fibrosis and production of IL-6 [60].

Subretinal fibrosis is a clinical manifestation of later period of nAMD [91], which is a wound healing response after CNV, together with the damage of photoreceptors, RPE and choroidal blood vessels, causing irreparable visual impairment [19]. Cellular and ECM constituents, and the growth factor mediated EMT act as important roles in the RPE and the complex signaling networks of fibrosis in AMD [28]. There are two important processes, including EMT and endothelial-mesenchymal transition (EndMT), and TGF-β is the main regulator and the Snail superfamily are key transcription factors [91]. Snail superfamily can bind to the DNA promoter region and stimulate the mesenchymal changes, cell migration and proliferation of different epithelial cells, thereby inhibiting the effects of epithelial molecules [92]. TGF-β can upregulate the expression of Snail [92], and suppression of TGF-β reduced the size of subretinal fibrosis in vivo [93]. Moreover, knockdown of both TGF-β2 and Snail suppressed the EMT process of RPE cells more obviously compared to either single gene silencing [94].

In summary, a series of cytokines play constructive roles in the pathogenesis of AMD, including the formation of CNV and subretinal fibrosis. The development of novel targeted therapies could potentially be considered for further investigations.

Leukocytes

Leukocytes are immune cells that are closely correlated with AMD pathogenesis. Both innate and adaptive immune cells play key roles in AMD.

Microglia/Macrophages

A hallmark of AMD development is the recruitment of the innate immune cells in the subretinal area with age [95]. The resident immune cells are the microglia in the retina, similar to tissue macrophages, which maintain normal retinal function, including the monitor and phagocytosis of damaged cell components [96]. Senescent microglia respond slowly to the injury and microglial dysfunction is a key factor in early AMD [95]. When retinal microglia migrate to the subretinal space, they may cause obvious changes in RPE cells, including further accumulation of microglia, increasing inflammation in the outer layer of the retina, and contributing to the formation of new blood vessels in wet AMD [97]. Besides, activated microglia maybe neurotoxic, and cause the degeneration of photoreceptors, along with phagocytizing dead photoreceptor cells [98]. The infiltration of microglia and macrophages to the injured retina, contribute to the development of retinal neovascularization [96].

It is well-known that macrophages are a key modulator of tissue repair, regeneration and fibrosis. There are two major functional subtypes of macrophages, namely classically activated macrophages (M1) and alternatively activated macrophages (M2). M1, or pro-inflammatory macrophages, are anti-tumoral and cause tissue injury. M2, or anti-inflammatory macrophages, facilitate tissue repair and angiogenesis, as well as tumorigenesis and tumor metastasis. However, these two phenotypes can transform into each other as the microenvironment changes [99-101]. IL-1β, IL-12, IL-23, IFN-γ, LPS, and TNF-α induce the M1 macrophages that express CCL3, CCL5, CD80, CCR7, and iNOS. M2 macrophages, induced by IL-4, IL-10, IL-13, TGF-β, can express CCL22, CD206, CD163. ROCK signal can determine the polarization of macrophages to M1 and M2 phenotypes, and aging increases ROCK2 signal transduction, leading to the overexpression of pro-angiogenic M2 macrophages [102]. Yang et al. demonstrate that M1 macrophages participate in the initial stage of CNV, while M2 phenotype plays an important role in the middle and late stages of CNV development and remodeling, thus, M2 is considered to be more important in the progress of CNV [101]. However, Zhou et al. indicated that M1 macrophages have a more direct effect in suppressing CNV development, and M1 macrophages were primarily present in the RPE-choroid, while M2 were mainly located in the retina [103]. Both macrophage recruitment to BM and polarization of resident choroidal macrophages were related to extracellular deposits, including soft drusen and thick, continuous basal laminar deposits [104]. In nAMD patients, a large number of macrophages are involved with considerable florid CNV formations in the submacular choroid [105]. Activated macrophages are significantly increased in the submacular choroid related to RPE atrophy in GA eyes [105]. It is demonstrated that M2 macrophage polarization and CNV formation are induced by chitinase-3-like-1 (CHI3L1) that can also increase VEGFA expression [106]. Besides, there are higher levels of phosphorylated signal transducer and activator of transcription3 (pSTAT3) and higher VEGF secretion in monocytes, promoting the development of CNV [107]. Apte et al. proved that IL-10 suppressed the recruitment of macrophage to neovascular lesions and enhanced CNV formation [82]. Macrophages and microglia may be closely related to RPE degeneration. It was found that even if the number of macrophages in the subretinal space is lower, it may contribute to the apoptosis of RPE cells, thereby promoting the development of AMD [108]. It was also discovered that local component 1q (C1q) produced by microglia/macrophages plays a role in inflammasome activation and inflammation, and neutralizing effects of C1q may slow retinal atrophy [109].

Dendritic Cells

DCs, which are effective antigen-presenting cells (APCs), have the special ability to activate B and T lymphocytes. In other words, while DCs are innate immune cells, they are also closely related to the adaptive immune response [110]. Without obvious damage, retinal DCs promote homeostasis, but they respond quickly once an injury occurs (the number increases dramatically and supports T cell activation) [111]. Nakai et al. revealed that DCs have the pro-angiogenic effect in CNV model, and intravenously injected immature DCs, rather than mature DCs, increased CNV size in vivo [112]. In the case of RPE cell injury, DCs are presented in drusen-related changes in the retina. Furthermore, it has been discovered that autophagy-related dying RPE cells would gradually be engulfed by macrophages, DCs and living RPE cells in vitro [113]. DCs in choroid may lose the tolerogenic functions and develop into effective APCs, when pro-inflammatory cytokines like GM-CSF, TNF-α or IL-1 were presented without immunomodulatory cytokines such as MCP-1. Moreover, other immune cells can interact with DCs. For instance, macrophages can synergistically promote antigen presentation by DCs, NK cells and DCs can mutually promote activation and maturity, and produce cytokines [114, 115]. Accumulating evidence shows that the occurrence of AMD may be the consequence of the dysregulation of choroidal DCs [114].

Neutrophils

Neutrophils are the frontline effective cells in the innate immune system, with complex biological functions including regulating acute injury and repair, autoimmunity, and chronic inflammation [116]. Once neutrophils are recruited, second-wave inflammation occurs, and leads to the recruitment of monocytes/macrophages [117]. It can also stimulate T cell activation by expressing MHC class II[118]. A stronger correlation has been shown between nAMD and neutrophil-to-lymphocyte ratio (NLR) elevation compared with healthy controls [119], and NLR is related to disease severity as well as CNV and lesion size [120, 121]. Neutrophils are associated with retinal angiogenesis in laser-induced CNV. Neutrophils produce matrix metalloproteinase 9 (MMP-9), which degrades and reshapes the extracellular matrix (a key process of angiogenesis) and destroys the integrity of the RPE barrier [118]. Besides, neutrophils cause angiogenesis by producing pro-angiogenic factors such as VEGF and IL-8, VEGF recruit neutrophils which secret more MMP-9 in turn [118]. Furthermore, increased infiltration of lipocalin-2 (LCN-2)-positive neutrophils were found in the choroid and retina of patients with early AMD [122]. AKT2/nuclear factor-kB (NF-kB)/LCN-2 signaling axis can mediate inflammation activation in AMD [122]. Inhibiting AKT2 decreases LCN-2-mediated neutrophil infiltration into the retina and reverses early AMD-like phenotype changes [123].

T lymphocytes

T cells are an important part of the adaptive immune system. The evidence of adaptive immunity involved in AMD derives from anti-retinal autoantibodies in AMD patients [124]. Th cells activate B cells to produce antibodies, macrophages to damage ingested microbes, and cytotoxic T-cells to destroy infected target cells [125]. Carboxyethylpyrrole (CEP) - specific T cells secret pro-inflammatory cytokines, leading to M1 polarization, and link innate immunity and adaptive immunity at the beginning of AMD [124]. Th1 cells are associated with IL-2, IL-12, IFN-γ, TNF, while IL-4, IL-10 and IL-13 are involved in Th2 response, and IL-17 is a Th17 cytokine [126]. The relevance of Th cells, cytokines and macrophages has been summarized in Figure 1.

Th1 cytokines increased in the vitreous and aqueous humor, while TGF-β can block Th1 cell activation and promote ocular immune tolerance [40]. Th1 and Th17 cells can produce pro-inflammatory cytokines, promote the polarization of M1 macrophages, and participate in the process of neovascularization and neurodegeneration [125, 127]. In nAMD patients, there are a lower frequency of Th1 cells and CXCR3+CD4+T cells. CXCR3 inhibits angiogenesis, so a lower level of CXCR3 may contribute to angiogenesis and cause CNV formation and growth [125, 128]. Th2 and Th17 cells may be involved in the development of subretinal fibrosis [118]. Circulating Th1 cells and Th2 cells participate in the pathogenesis of nAMD [129]. Patients present a higher level of follicular helper T (Tfh) cells which modulate B cells secreting Ig[130]. It has been recognized that circulating CD56(+) CD28(-) T cells are increased, and CD56(+) is a marker of T cell aging. nAMD is related to T cell immunosenescence [131, 132]. Shi et al. demonstrated that A2E inhibited the regulatory effects of RPE cells in Th1 cell differentiation by producing IL-1β and suppressing PGE2 [133].

B lymphocytes

The number of B lymphocytes changes with age, which may be because of increased autoimmunity in the elderly population. But there are no significant differences in AMD compared with healthy individuals [134]. A study suggested that B cells from advanced AMD patients secret higher levels of antibodies to fight bacterial antigens, especially including IgM, IgG and IgA, and more sensitive to the more diluted concentration of bacterial antigens [135]. However, the relationship and mechanisms between B lymphocytes and AMD still remain unclear and further investigations are needed.

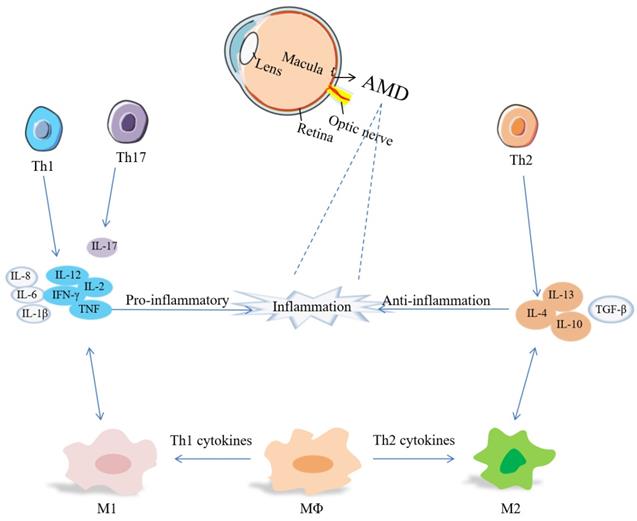

 Figure 1

Links between Th cells and macrophages by cytokines in inflammation of AMD. Inflammation includes pro-inflammatory cytokines (IL-1β, IL-2, IL-6, IL-8, IL-12, IL-17, TNF-α, IFN-γ, etc.) and anti-inflammatory cytokines (IL-4, IL-10, IL-13, TGF-β, etc.).

Int J Biol Sci Image (Click on the image to enlarge.)

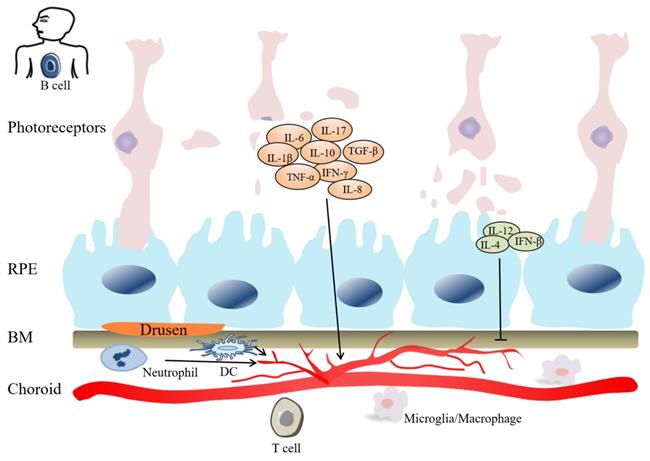

 Figure 2

Inflammation plays role in the pathogenesis of AMD. Innate immune cells (macrophages, DCs, Neutrophils) can stimulate adaptive immune cells (B cells and T cells), and participate in CNV pathogenesis. Cytokines, include IL-1β, IL-6, IL-8, IL-10, IL-17, TGF-β, IFN-γ, TNF-α, etc, have angiogenic property. Cytokines, such as IL-4, IL-12, IFN-β, inhibit angiogenesis. In the late stage of AMD, photoreceptor cells are gradually damaged.

Int J Biol Sci Image (Click on the image to enlarge.)

Potential applications in AMD

There are multiple auxiliary diagnostic methods for AMD. Local and systemic inflammatory molecules have been proposed as AMD potential biomarkers, such as CRP, active monocytes, NLR [120, 136-138], but no specific and reliable markers have been found so far.

For early AMD patients, it is suggested to control relevant risk factors, such as quit smoking and keep a balanced and healthy diet [139]. The application of anti-angiogenic drugs by blocking VEGF, is a major breakthrough for nAMD patients [140]. However, some patients have a poor response. And anti-VEGF therapy cannot change the process of the disease at all, but only resist its effects over time and delays its development [15, 141]. Therefore, some scholars have turned their attention to anti-inflammatory therapy which is crucial for AMD pathogenesis. Drugs such as Lampalizumb, Eculizumab, Zimura and Iluvien have initially shown potential effectiveness in clinical trials, and need to be further verified [142-144]. As some popular emerging technologies, small interfering RNAs (siRNAs) and clustered regularly interspaced short palindromic repeats (CRISPR)/ CRISPR-associated protein 9 (Cas9) could selectively disrupt the VEGF gene [145-149]. Several inflammatory-related cytokines also act on VEGF or VEGF-related mechanisms, so we hypothesized whether can use CRISPR/ Cas9 or siRNAs to target these cytokines and achieved the therapeutic effect on AMD. It is necessary to explore applications of pro- and anti-inflammation in future investigations.

Conclusion

Although the pathogenesis of AMD is undoubtedly an interaction of multiple factors, significant evidence has emerged implicating inflammation contribute to the development of AMD. RPE releases a large number of inflammatory mediators, contributing to an inflammatory cascade. When the long-term struggle between pro-inflammatory and anti-inflammatory responses eventually loses balance, AMD occurs. Both pro-inflammatory cytokines IL-1β, IL-6, IL-8, IL-12, IL-17, TNF-α, CSF-1, IFN-β and IFN-γ, and anti-inflammatory cytokines IL-4, IL-10 and TGF-β, play important roles in CNV formation through different signaling mechanisms. Similarly, pro-inflammatory cytokines IL-2, IL-6 and anti-inflammatory cytokine IL-10 and TGF-β are involved in the process of fibrosis. Besides, the inflammatory response is inseparable from the accumulation of various inflammatory cells in the eye, mainly innate immune cells such as macrophages, DCs, neutrophils and adaptive immune cells such as T lymphocytes and B lymphocytes. Immune cells can secret cytokines, and are affected by cytokines in turn. Mounting evidence supports the notion that inflammation is involved in AMD. Our review provides an overview of inflammation-related factors that may provide a feasible basis for better treatment options for AMD.

Abbreviations

AMD: Age-related macular degeneration; nAMD: neovascular AMD; GA: geographic atrophy; RPE: retinal pigment epithelium; CNV: choroidal neovascularization; VEGF: vascular endothelial growth factor; BM: Bruch's membrane; DCs: dendritic cells; TGF: transforming growth factor; TSP: thrombospondin; Tregs: regulatory T cells; TNF: tumor necrosis factor; IFN: interferon; IL: interleukin; CSF: colony-stimulating factor; NLRP3: NLR family pyrin domain-containing3; IL-1Ra: IL-1 receptor antagonist; ECM: extracellular matrix; CRP: C-reactive protein; ROS: reactive oxygen species; PI-3K: Phosphoinositide 3-kinase; mTOR: mammalian target of rapamycin; CECs: choroidal endothelial cells; sFlt-1: soluble fms-like tyrosine kinase 1; LPS: lipopolysaccharide; EMT: epithelial-mesenchymal transition; EndMT: endothelial-mesenchymal transition; CHI3L1: chitinase-3-like-1; pSTAT3: phosphorylated signal transducer and activator of transcription3; C1q: component 1q; APCs: antigen-presenting cells; NLR: neutrophil-to-lymphocyte ratio; MMP-9: matrix metalloproteinase 9; LCN-2: lipocalin-2; NF-kB: nuclear factor-kB; CEP: Carboxyethylpyrrole; Tfh: follicular helper T; siRNAs: small interfering RNAs; CRISPR: clustered regularly interspaced short palindromic repeats; Cas9: CRISPR-associated protein 9.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (No. 81800855 and 81770930), Natural Science Foundation of Hunan Province (No. 2018JJ3765), Changsha Science and Technology Project (No. kq1907075) and Department of Science and Technology, Hunan (No. 2015TP2007).

Competing Interests

The authors have declared that no competing interest exists.
